Black Eye
THIS DEVICE IS NO LONGER IN PRODUCTION

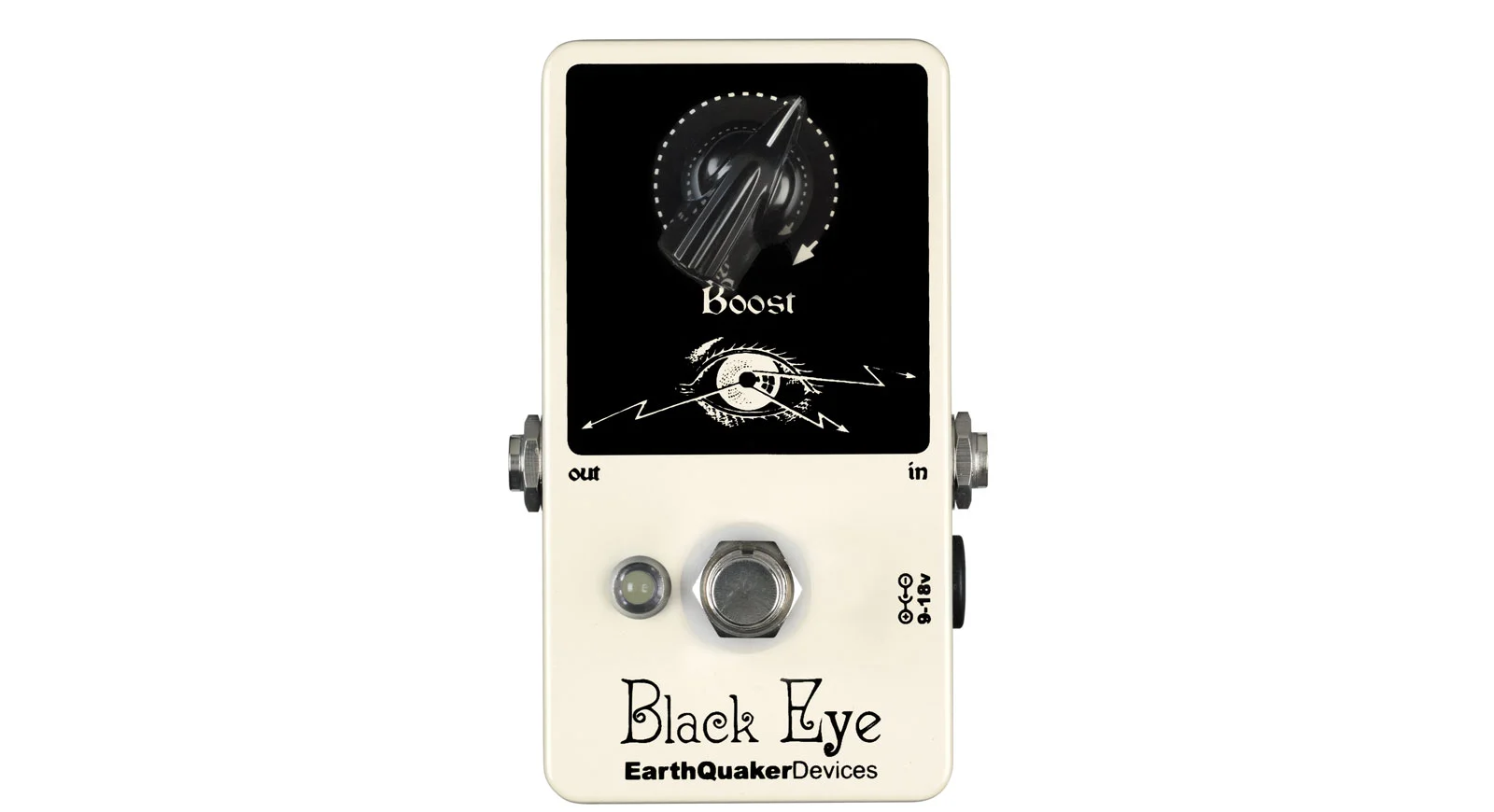

Black Eye
This ll discrete, MOSFET based circuit provides nearly 30db of unadulterated clean gain boost with a minimum amount of tone coloration. Note that you can also use this as an attenuator by turning the Boost knob counterclockwise away from the noon position. It can also be used as a powerful buffer with an input impedance of around 5M Ohms and an output of around 1K Ohm, best used after your effects chain. This device does not create distortion or overdrive on its own. However, it can be used to drive your favorite amp or pedal into singing distorted sustain. Simple, yet effective. Top notch components and circuit design assure that your signal arrives to its destination in a truly pure state.
The Black Eye is true bypass and built one at a time by human beans on the shore front of Akron, Ohio.
Controls
Boost/Cut: External
Gain: Internal Trimmer
Measures
4.37″ X 2.37″ X 1.07″ with knob
Power
Our pedals take a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. Do not run at higher voltages!
Current draw is 2 mA.
